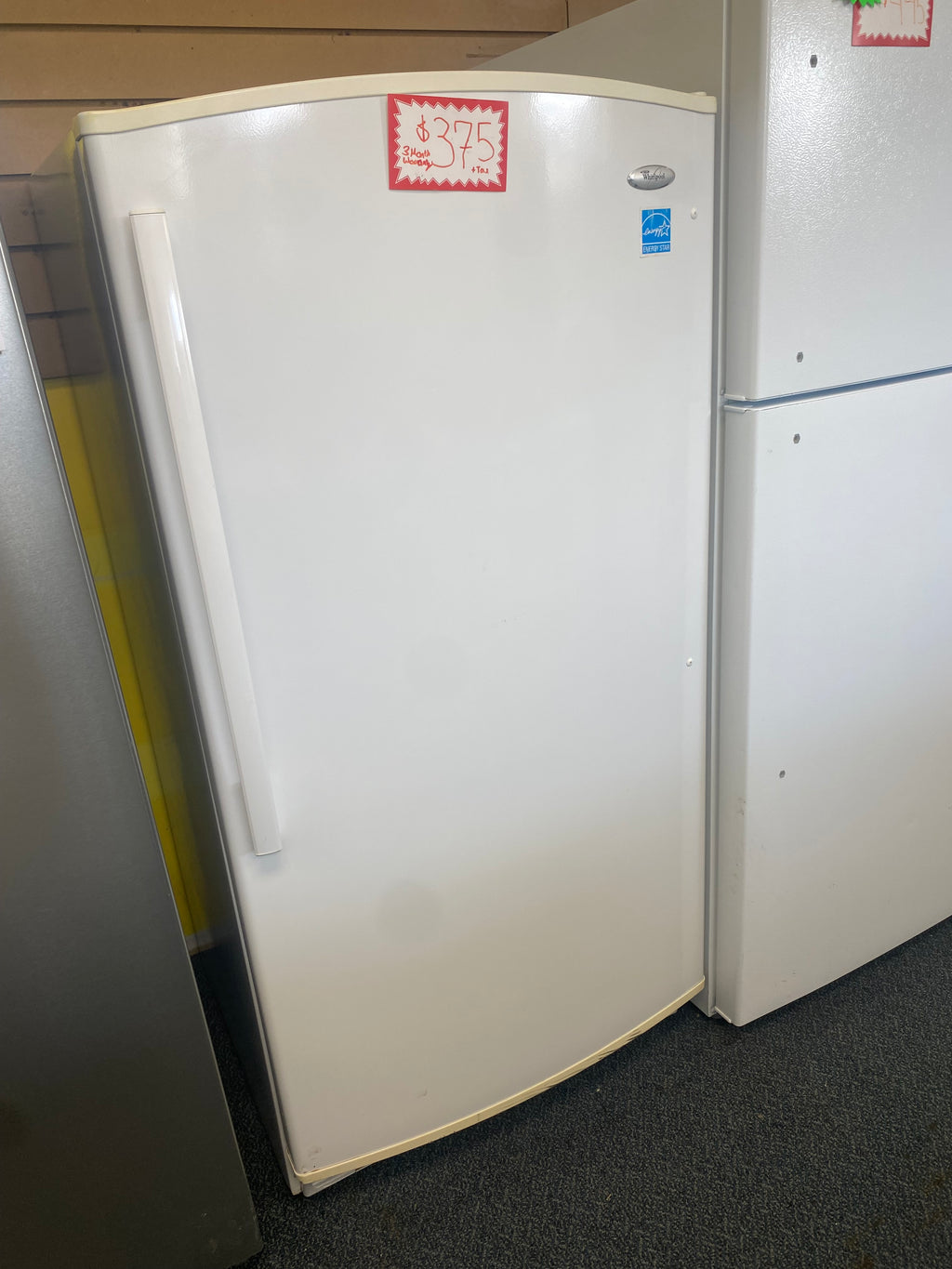

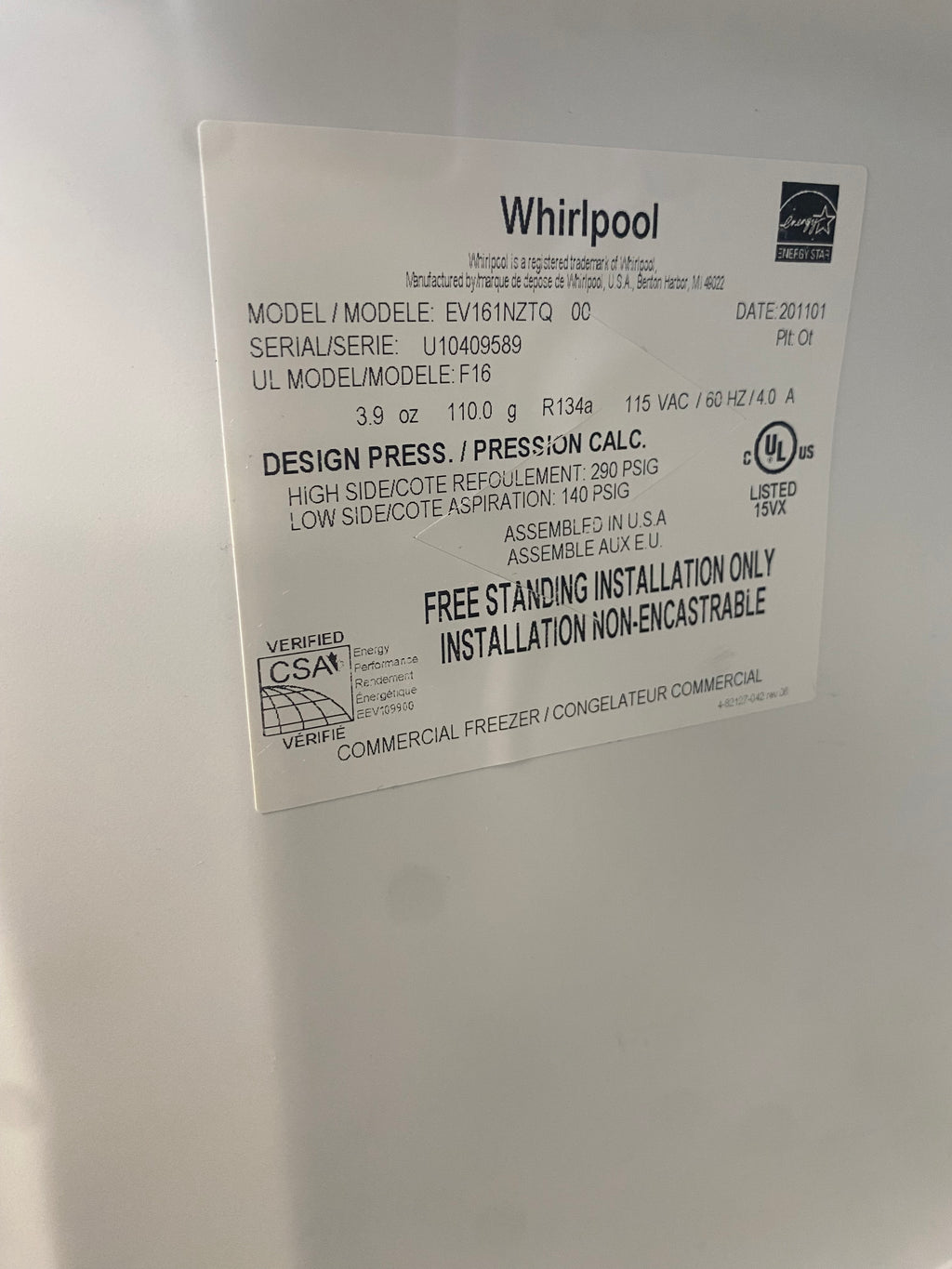

Model: EV161NZTQ00 Serial Example: EV161NZTQ00 / U10409589 Type: Commercial Upright Freezer Brand: Whirlpool UL Model: F16 Finish: White Installation: Free‑standing only

Overview

The Whirlpool EV161NZTQ00 is a 16 cu. ft. commercial‑rated upright freezer designed for reliable long‑term frozen storage. Built for durability and consistent temperature performance, it is suitable for residential, cottage, retail, and light commercial environments. The unit uses a proven R134a refrigeration system and is assembled in the USA.

Capacity

• Total Capacity: ~16 cu. ft.

• Style: Upright, single door

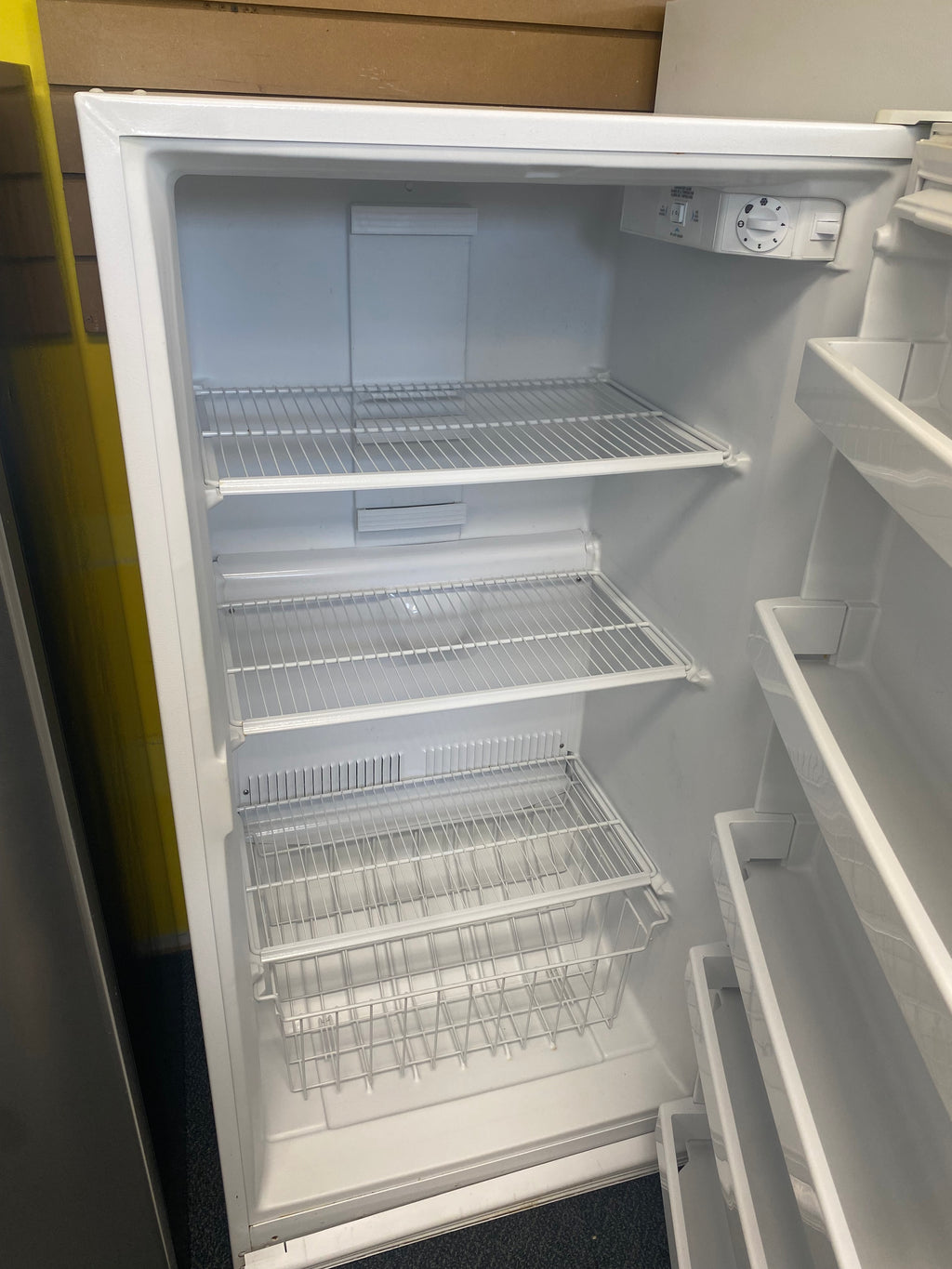

• Shelving: Fixed and adjustable wire shelves (varies by batch)

Dimensions

• Height: 60.25 in

• Width: 30.25 in

• Depth: 29.25 in

• Depth with Door Open 90°: ~55 in

• Door Swing: Right‑hand (non‑reversible on this series)

Electrical & Refrigeration

• Voltage: 115V AC

• Frequency: 60 Hz

• Phase: 1Ø

• Amperage: 3.9A

• Refrigerant: R134a

• Charge: 1100 g

• Compressor Type: Standard commercial‑grade

• Energy: Manual defrost (typical for this model family)

Design & Construction

• Commercial freezer rating

• Free‑standing installation only

• Heavy‑duty door gasket

• Interior lighting

• Wire shelving for airflow

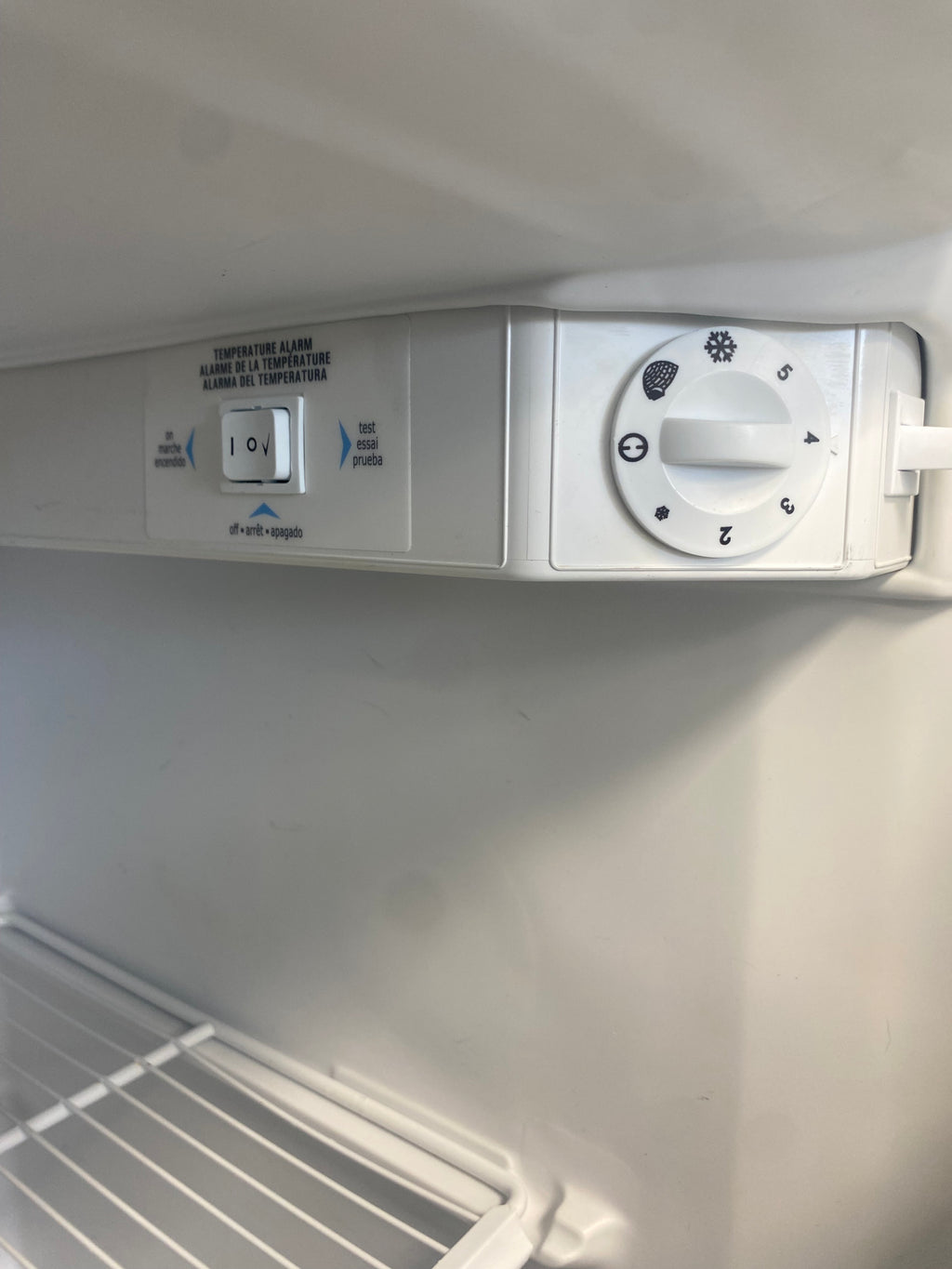

• Mechanical temperature control

Pressure Ratings

• High Side: 290 PSIG

• Low Side: 140 PSIG

Ideal For

• Small businesses

• Restaurants and cafés

• Convenience stores

• Cottages and basements

• Long‑term frozen food storage
